Active Crossover Kit for DIY Speaker Builders

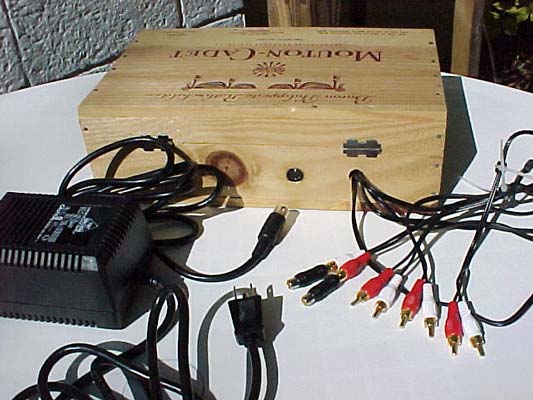

Image File: The Assembled Kit (box not included)

     I put my breadboard into a wine box I had lyingaround.  Really, this box is much larger than necessary.  You can see 4pairs of RCA jacks: stereo (from preamp) in, stereo tweeter out, stereo mid out,and stereo woofer out.  You can also see a DIN connector that the power supplywill plug into.  The power supply is shown also.  You can see there isplenty of AC cable (plug into wall), and DC cable (plug into chassis), so you couldput this power supply where ever you want.
